Split Skive Ferrule-For Spiral Hose Fittings
Split Skive Ferrule-For Spiral Hose Fittings
Key words:
Split Skive Ferrule-For Spiral Hose Fittings
Classification:
Quick Overview:
The Split Skive Ferrule is a high-strength fitting component designed for ultra-high-pressure spiral hose assemblies. With a split-body construction and skive-required interface, it ensures deep insertion, secure crimping, and excellent grip in dynamic high-load systems. Available in sizes from DN19 to DN51, it accommodates the most demanding hydraulic applications.
Description
Split Skive Ferrule-For Spiral Hose Fittings
Application:Engineered for six-spiral steel wire hoses,such as ISO 18752 and SAE 100R15.This ferrule is ideal for critical hydraulic circuits in offshore drilling rigs, steel production lines, large excavators, and pressurized mining systems. Its robust split design enhances assembly reliability under extreme working pressure, temperature fluctuation, and frequent impulse conditions.
Specifications:

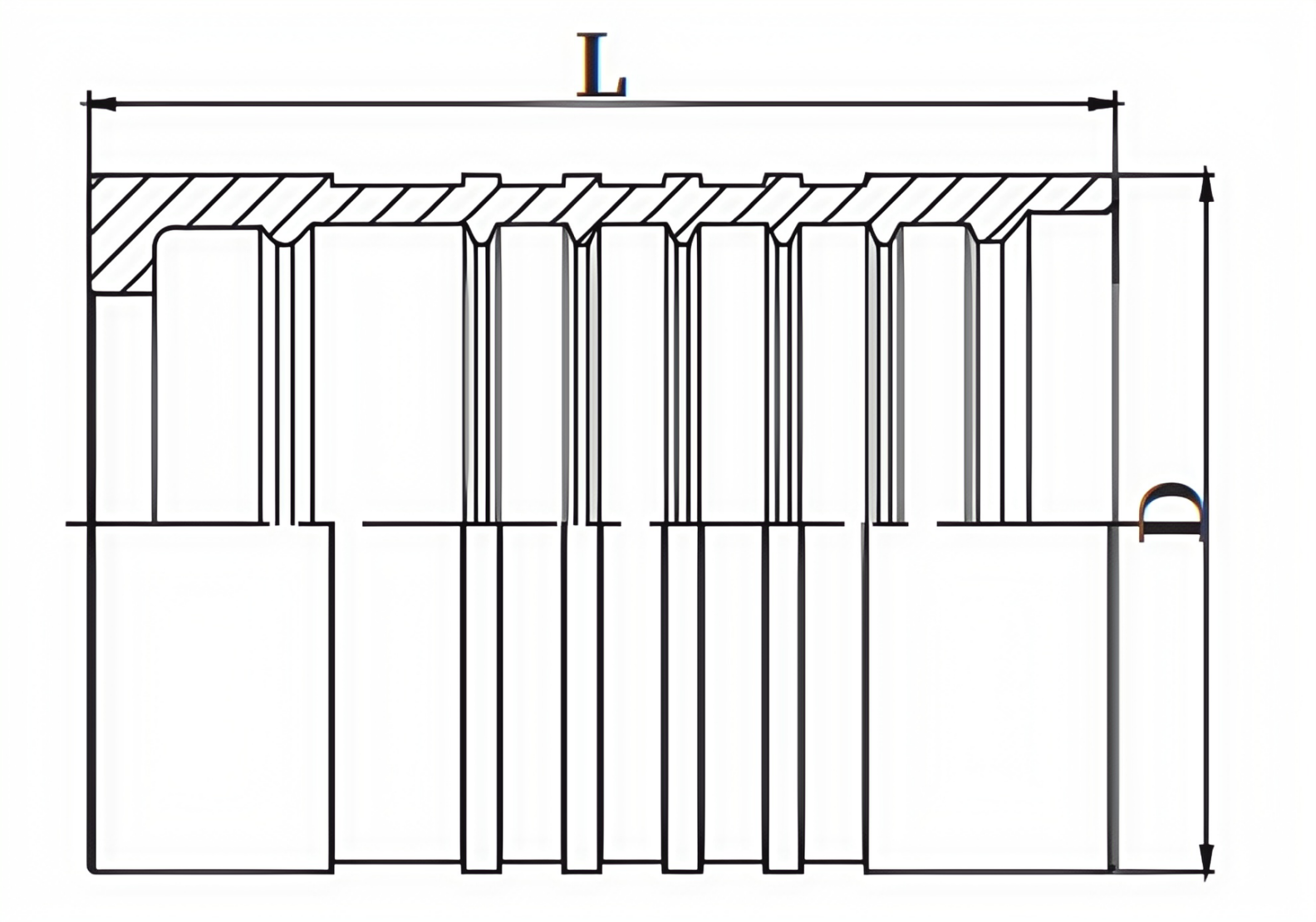

SPLIT SKIVE FERRULE FOR SPIRAL HOSE FITTINGS | Part No. | Hose Bore | L | O.D. | |
DN | DASH | mm | mm | ||
 | 00621-12 | 19 | 12 | 53 | 39.5 |
00621-16 | 25 | 15 | 66 | 48.5 | |
00621-20 | 32 | 20 | 88 | 60 | |
00621-24 | 38 | 24 | 102 | 69.3 | |
00621-32 | 51 | 32 | 106 | 84.5 | |
