Split Ferrule - For Textile Hose Fittings
Split Ferrule - For Textile Hose Fittings
Key words:
Split Ferrule - For Textile Hose Fittings
Classification:
Quick Overview:
The Split Ferrule for Textile Hose Fittings is designed for use with low- to medium-pressure fiber-reinforced hoses. Its split-body structure allows for easy installation and secure crimping, ensuring tight sealing and dependable performance. Available in sizes from DN6 to DN51, this ferrule supports a wide range of textile hose assemblies.
Description
Split Ferrule - For Textile Hose Fittings
Application:Engineered specifically for use with braided textile hoses,such as SAE 100R3, SAE 100R6, and low-pressure air or water hoses.This ferrule is widely applied in agricultural spraying systems, air tools, low-pressure lubrication lines, and general industrial fluid transport. Its lightweight design and firm grip make it a reliable choice for flexible hose connections where weight, bendability, and cost-efficiency are key.

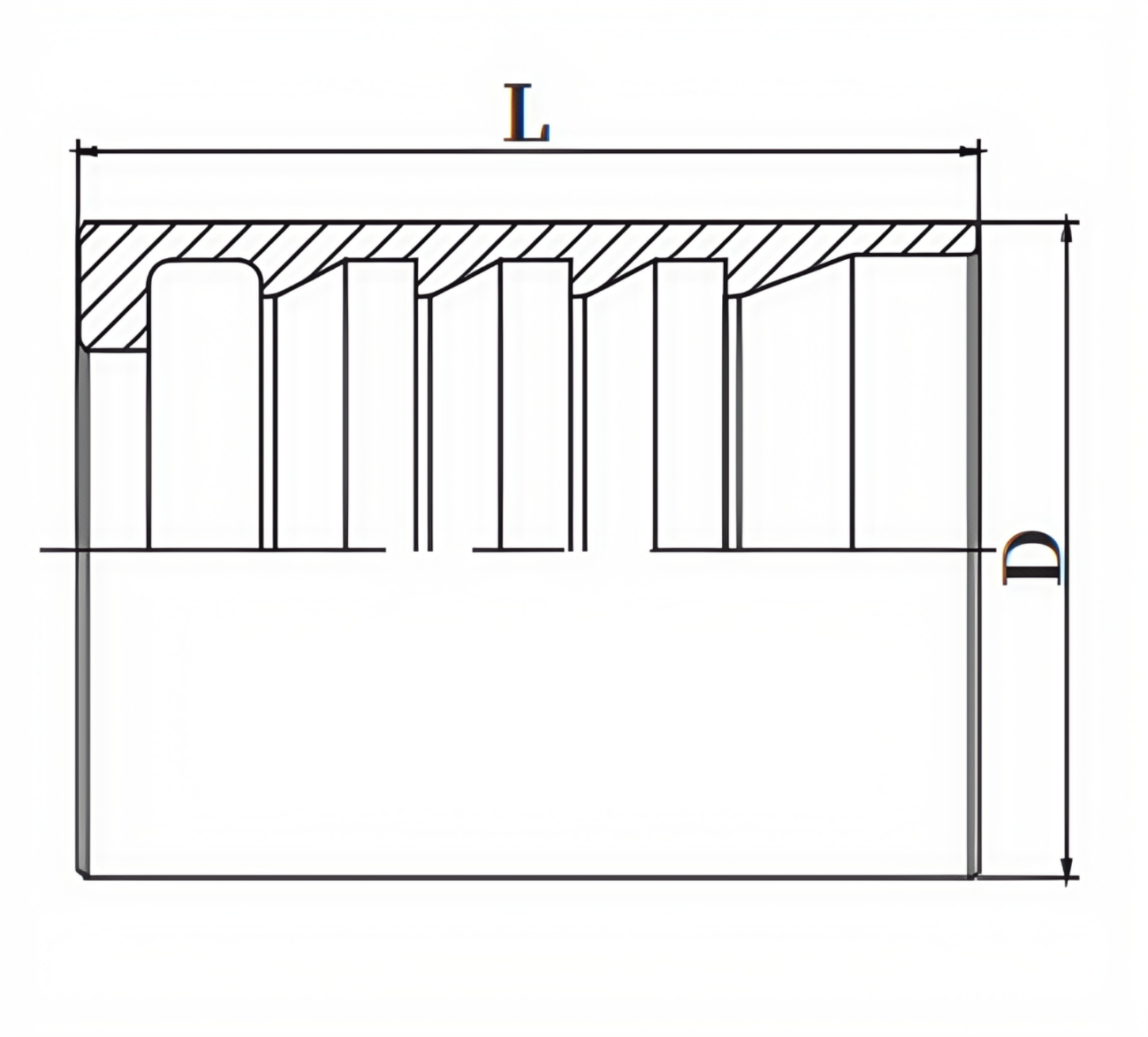

Specifications:
SPLIT FERRULE | Part No. | Hose Bore | L | O.D. | |
DN | DASH | mm | mm | ||
 | 00110-04 | 6 | 4 | 30 | 20.6 |
00110-05 | 8 | 5 | 31 | 20.8 | |
00110-06 | 10 | 6 | 32 | 23.3 | |
00110-08 | 13 | 8 | 34 | 27 | |
00110-10 | 16 | 10 | 37 | 32 | |
00110-12 | 19 | 12 | 43 | 34 | |
00110-16 | 25 | 16 | 50 | 42.6 | |
00110-20 | 32 | 20 | 59 | 52 | |
00110-24 | 38 | 24 | 74 | 58 | |
00110-32 | 51 | 32 | 78 | 72 | |
